Description

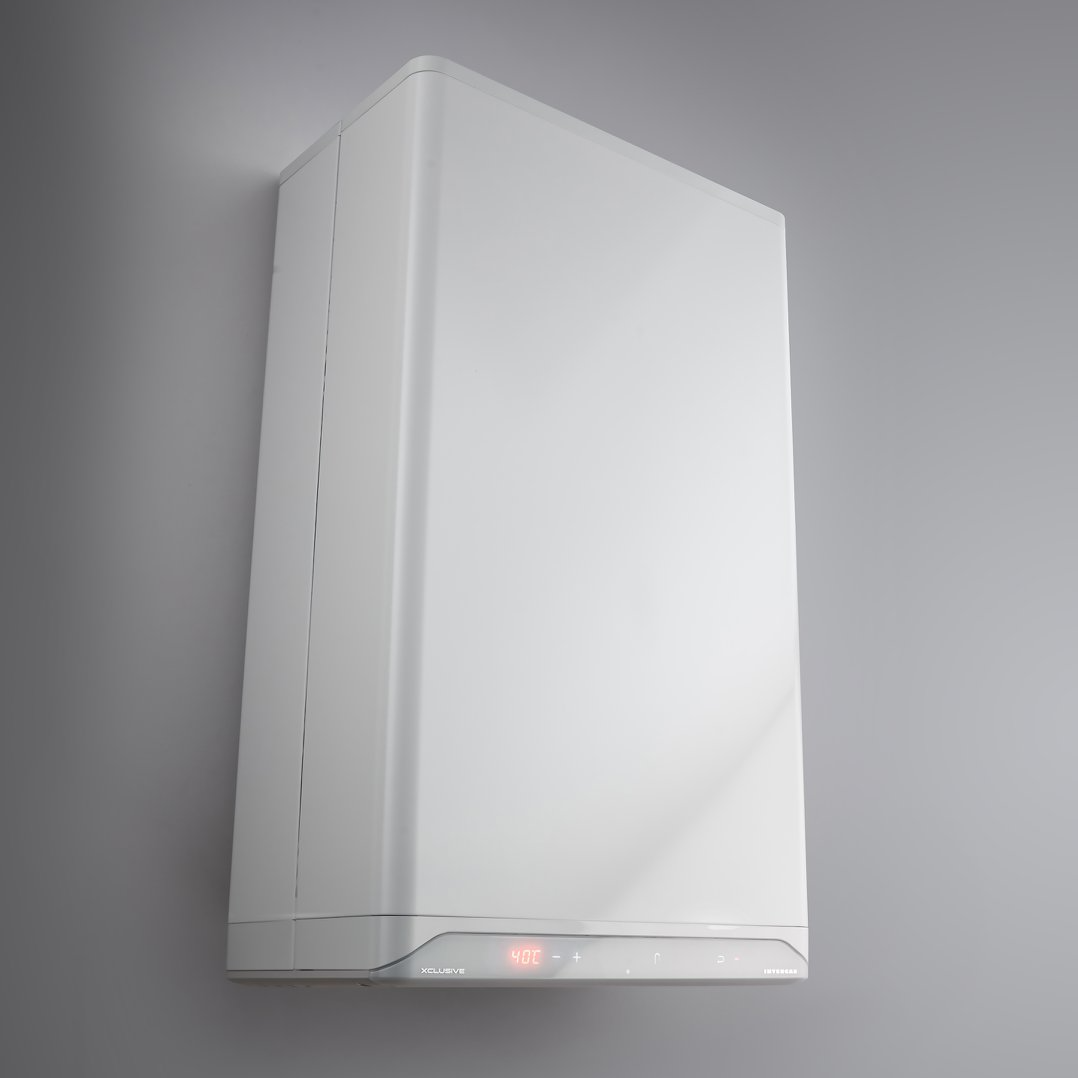

Intergas Xclusive 30 (035114)

Intergas Xclusive 30 (035114) box contents:

1x Intergas Xclusive 30

1x Wall Bracket

1x Flexible Condensate Hose

1x Valve Set (Inc. Filling Loop)

1x Installation & Operation Manual

1x 10 Year Warranty Cardÿ(*12 Year Warranty is available when fitted with an Intergas System Filter and both items are warranty registered with Intergas Heating at the same time)

PLEASE NOTE: The boiler flue is not included. Please choose your flue system from theÿ‘Intergas Flues’ page or the ‘ACCESSORIES’ tab on this page.

The INTERGAS Shop’s Intergas Xclusive Review

The Intergas Xclusive 30 is the very latest and advanced boilers to be launched by Intergas Heating. The Intergas Xclusive 30 forms part of the latest X-Series range of Intergas boilers.

The Intergas Xclusive 30 uses the proven concept of the double aluminium two-in-one heat exchanger.ÿThe patented Intergas design, with two separate copper circuits, ensures optimum heat transfer and minimal heat loss.ÿThe central heating water and cold tap water flow directly through the heat exchanger, so that the flue gases cool down and the condensation heat is optimally utilised.

All Intergas Xclusive boilers have been fitted with ultra efficient A-rated Wilo pumps and fully comply with ErP energy legislation. This halves the boilers electricity consumption verses older combi boilers. The new Intergas X-Series of boilers use a sleek, touch-screen design for enhanced looks and simple user operation. The use of vacuum panel insulation inside the casing reduces heat and energy losses to an absolute minimum and ensures a whisper quiet operation year-in, year-out.

The Intergas Xclusive is fitted as standard with a Honeywell RF module for remote control and direct communicationsÿwith Honeywell’s wireless room thermostats (CMS927, CMS727 or T87RF) and therefore a separate wireless relay box is not required.

Intergas Xclusive 30 Features:

• 10 year ‘out the box’ parts and labour warranty (manufacturers T’s & C’s apply)
• XL hot water profile (suitable for 1-2 bathroom properties)ÿ
• Unique 2-in-1 double high efficiency heat exchanger
• Integrated easy access 6 litre expansion vessel
• Unique combined condensate and PRV outlet
• Virtually no standby losses
• High efficiency Wilo pump
• Sleek and innovative touch-screen control system
• Just 12 components and only 4 moving parts
• Ultra high efficiency – boiler condenses 100% continuously
• Build in Honeywell RF-module provides wireless connection to Honeywell wireless thermostats (CMS927, CMS727 and T87RF)

Specifications:

Domestic Hot Water:

Input: 3.6 – 30.5kW

17.1l/min @ 25øC rise

12.2l/min @ 35øC rise

Central Heating:

Input: 3.6 – 23.7kW

Boiler dimensions and weight:

Height: 766mm

Width: 450mm

Depth: 277mm

Weight: 30kg

Flue Length:

Max. 60/100 Concentric Horizontal: 10m

Max. 60/100 Concentric Vertical: 10m

Max. 80/80 Twin Horizontal: 85m

Max. 80/80 Twin Vertical: 85m

If you have any questions about the Intergas Xclusive 30, please send us an email.
