Description

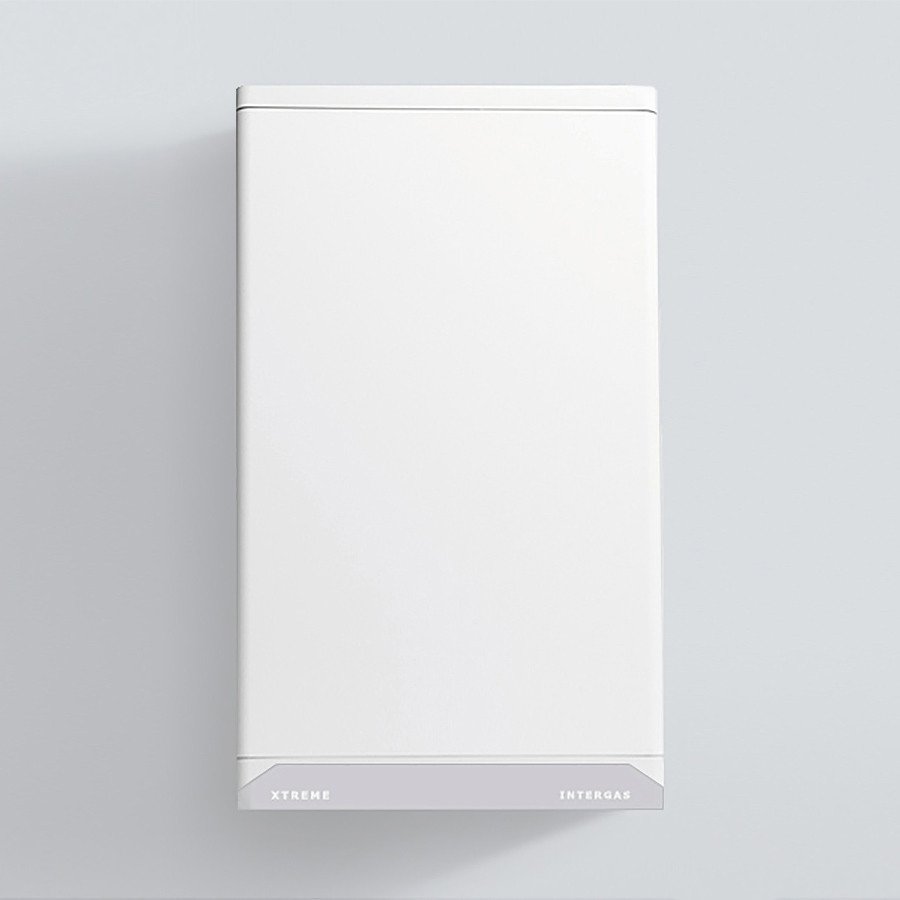

Intergas Xtreme 36 (035024)

Intergas Xtreme 36 (035024) box contents:

1x Intergas Xtreme 36 Condensing Combi Boiler (Inc. Built-In Passive Flue Gas Heat Recovery)

1x Wall Bracket

1x Flexible Condensate Hose

1x Valve Set (Inc. Filling Loop)

1x Installation & Operation Manual

1x 7 Year Warranty Card (*9 Year Warranty When Fit With Intergas System Filters)

PLEASE NOTE: The boiler flue is not included. Please choose your flue system from theÿ‘Intergas Flues’ page or the ‘ACCESSORIES’ tab on this page.

The INTERGAS Shop’s Intergas Xtreme Review

The Intergas Xtreme 36 is the very latest and most advanced boiler to be launched by Intergas Heating. The Intergas Xtreme 36 forms part of the latest X-Series range of Intergas boilers.

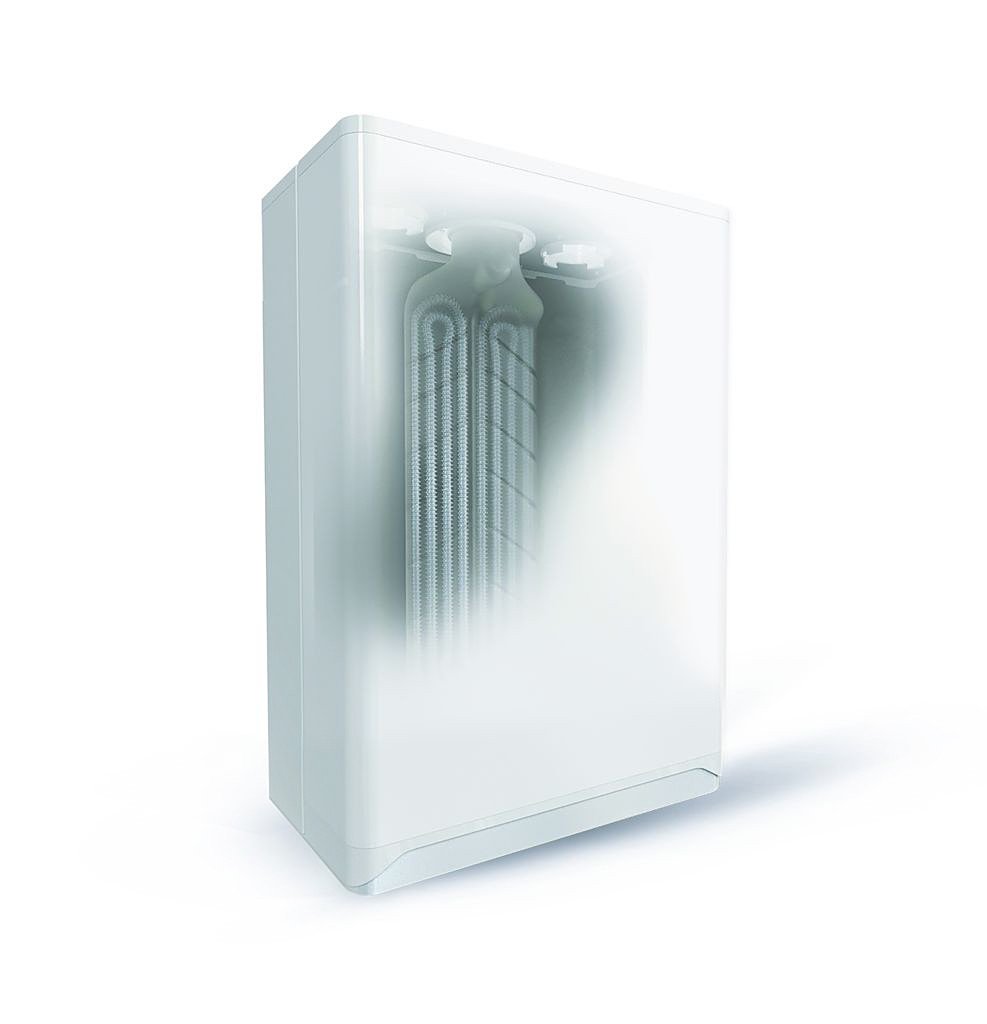

The Intergas Xtreme 36 uses the proven concept of the double aluminium two-in-one heat exchanger.ÿThe patented Intergas design, with two separate copper circuits, ensures optimum heat transfer and minimal heat loss.ÿThe central heating water and cold tap water flow directly through the heat exchanger, so that the flue gases cool down and the condensation heat is optimally utilised.

In addition to the Intergas tried and tested heat exchanger, a new secondary heat exchanger (Passive Flue Gas Heat Recovery (PFGHR) unit) is used in the Intergas Xtreme.ÿThis additional heat exchanger is integrated into the flue gas outlet of the appliance where the combustion flue gases are further cooled down.ÿThe residual heat from the flue gases is used during hot water operation to preheat the tap water.ÿThis means less energy is needed to bring the hot water to temperature.

All Intergas Xtreme boilers have been fitted with ultra efficient A-rated Wilo pumps and fully comply with ErP energy legislation. This halves the boilers electricity consumption verses older combi boilers. The new Intergas X-Range of boilers use a sleek, touch-screen design for enhanced looks with simple user operation. The use of vacuum panel insulation inside the casing reduces heat and energy losses to an absolute minimum and ensures a whisper quiet operation year-in, year-out.

The Intergas Xtreme is fitted as standard with a Honeywell RF module for remote control and direct communicationsÿwith Honeywell’s wireless room thermostats (CMS927, CMS727 or T87RF) and therefore a separate wireless relay box is not required.

Intergas Xtreme 36 Features:

• 7 year ‘out the box’ parts and labour warranty (manufacturers T’s & C’s apply)
• XXL hot water profile (suitable for 2-3 bathroom properties)ÿ
• Unique 2-in-1 double high efficiency heat exchanger
• New Passive Flue Gas Heat Recovery (PFGHR) heat exchanger ensures ultra efficient hot water
• Built-in and easy to service 6 litre expansion vessel
• Unique combined condensate and PRV outlet
• Virtually no standby losses
• High efficiency modulating Wilo pump
• Sleek and innovative touch-screen control system
• Just 12 components and only 4 moving parts
• Ultra high efficiency – boiler condenses 100% continuously
• Build in Honeywell RF-module provides wireless connection to Honeywell wireless thermostats (CMS927, CMS727 and T87RF)

Specifications:

Domestic Hot Water:

Input: 3.6 – 32.7kW

20l/min @ 25øC rise

14.5l/min @ 35øC rise

Central Heating:

Input: 3.6 – 27kW

Boiler dimensions and weight:

Height: 826mm

Width: 450mm

Depth: 277mm

Weight: 36kg

Flue Length:

Max. 60/100 Concentric Horizontal: 10m

Max. 60/100 Concentric Vertical: 10m

Max. 80/80 Twin Horizontal: 80m

Max. 80/80 Twin Vertical: 80m

If you have any questions about the Intergas Xtreme 36, please send us an email.
